Raspberry Pi 4 and Monarco HAT? Looking for testers!

Get the Monarco HAT board with a discount and help us test it with Raspberry Pi 4.

Why is testing needed?

The youngest member of the Raspberry Pi family, the Raspberry Pi 4 minicomputer, has been on the market since June 2019. It brings a more powerful quad-core CPU, two HDMI ports for dual display solutions, Gigabit Ethernet, USB 3.0 and bigger RAM (up to 4GB).

Alongside these changes the connectors have been moved to new locations, resulting in the need of a new enclosure for the Monarco HAT and Raspberry Pi 4.

Monarco HAT in an eclosure for Raspberry Pi 4 and Raspberry Pi 3
Metal enclosure for Monarco HAT and Raspberry Pi 4 (left) vs Raspberry Pi 3 (right)

From the perspective of the Monarco HAT, the most important news is the increased heat generated by the new and more powerful CPU, which is our main concern and the primary reason for extensive testing.

Our internal testing shows that the Raspberry Pi 4 works well with the Monarco HAT in applications and projects for which the Monarco HAT was designed for, i.e. data acquisition (DAQ), data logging, monitoring of machines and processes, collecting data from legacy PLCs, (I)IoT gateway, etc.

Under light load (*), the CPU temperature settles around 66.5°C in Raspberry Pi 4, compared to 62.5°C in Raspberry Pi 3B+. In both models we use the latest Raspbian Desktop OS with no tweaks. As you can see in the image from thermal camera below, there are only slight differences also in the surface temperatures of the metal enclosures.

*) 3000 high-pass filters (LLC blocks), executed each 5 milliseconds by REXYGEN runtime core

Infrared photo of Monarco HAT on a DIN rail, Raspberry Pi 3 and 4

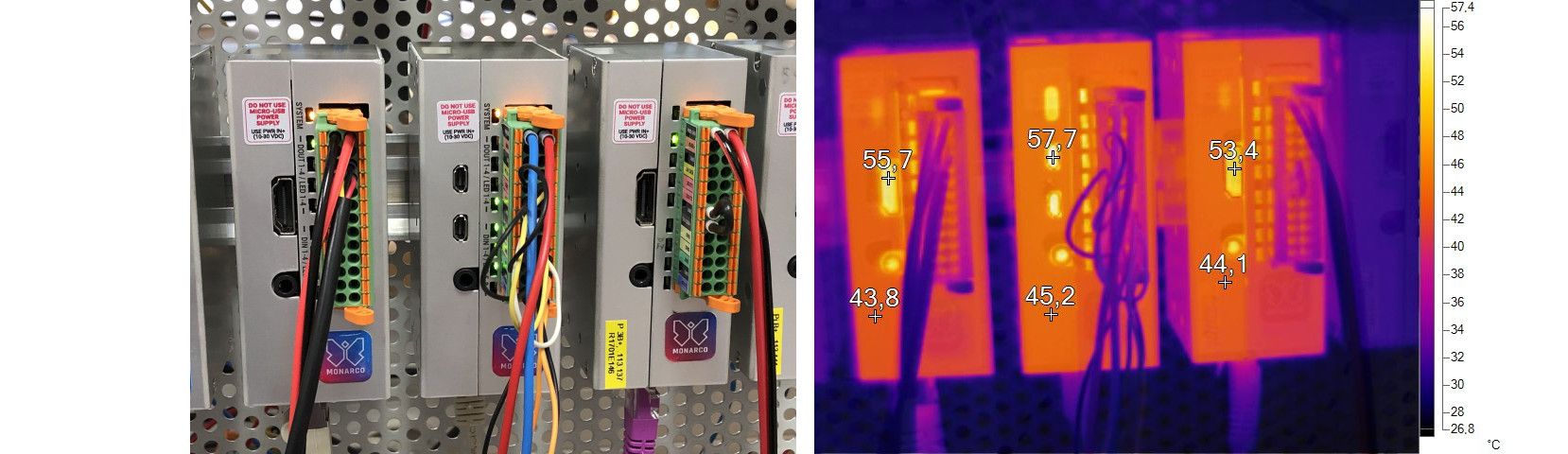

Standard and infrared photo of Monarco HAT in an enclosure with Raspberry Pi 3B+ (left), Raspberry Pi 4 (center) and again Raspbery Pi 3B+ (right). All are running the same algorithm (light load).

When a synthetic stress test is started, temperatures rapidly grow to 85°C where the CPU is throttled (CPU frequency is lowered to reduce power) to avoid further overheating and damage (see the time plot below). CPU throttling happens significantly sooner in RPi4 (32 seconds) compared to 220 seconds in RPi 3B+. It is important to keep in mind that the full CPU power induced by the stress test is about 4 times higher in the case of RPi4. Ambient temperature during the test was 25°C, the devices under testing were mounted in vertical position on a DIN-rail.

Playing a bit more with the RPi4 we observed it's no problem to overheat it while e.g. watching Full HD videos on YouTube, but that's hardly the case in typical projects in industrial automation.

CPU stress test, Raspberry Pi 4 vs. 3B+

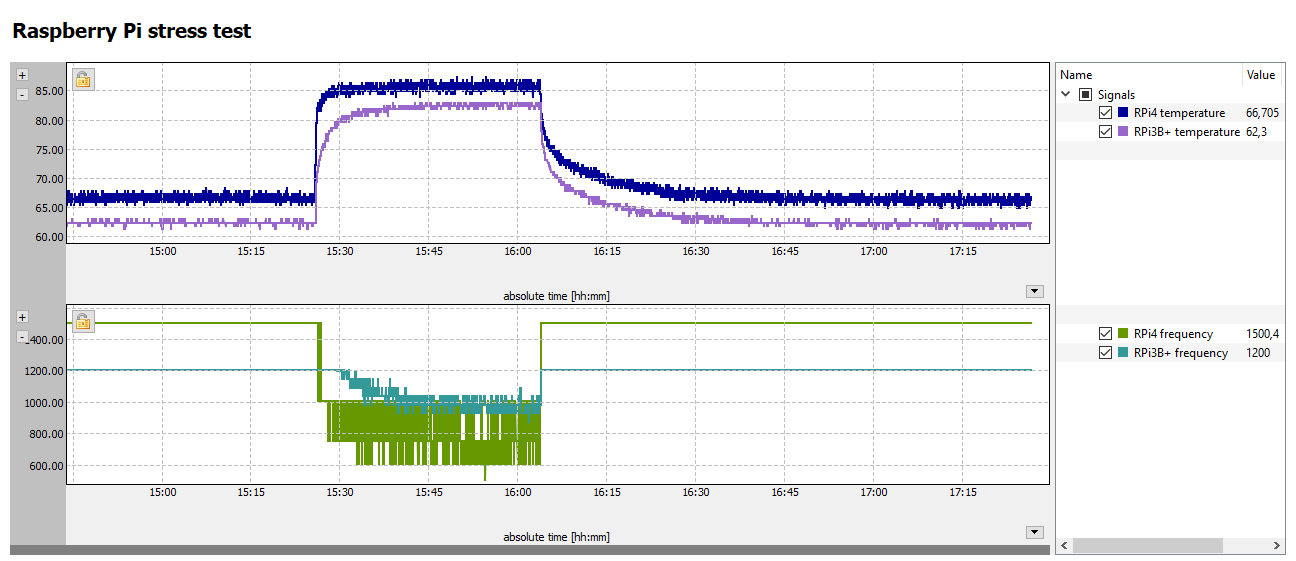

A synthetic CPU stress test on a Raspberry Pi 4 and 3B+. Moderate load (left and right part) vs full load (middle part). Ambient temperature 25°C.
Temperatures in a synthetic test vs. real-world testing
Sure, the thermal management and heat dissipation in Raspberry Pi 4 deserves our attention. But how serious is the problem? Is it a blocker for using Raspberry Pi 4 in industrial automation? What behaviour and performance will we observe in real-world projects and applications? That's exactly where we need your help with the testing.

How exactly can you help us?

  • 1
    Get Monarco HAT and metal enclosure for Raspberry Pi 4
    Use this special occasion to get our products with a discount.
  • 2
    Use Raspberry Pi 4 with Monarco HAT in your project
    Both completely new projects and upgrades of existing projects are highly welcome. It does not matter what software and tools you are using for programming, we want to hear from all of you.
  • 3
    Provide feedback
    Let us know the results of your testing. We're looking for projects where the thermal management of Raspberry Pi 4 poses a problem.
  • 4
    Get your reward
    Your feedback is invaluable for us and we'll be happy to reward you for providing it.

Willing to participate? Welcome on board!

Use your discount code before Wednesday, January 29th 2020, 12:00 Central European Time, and enjoy your 30 EUR discount.
Choose one of the options below.

Monarco HAT in enclosure for DIN rail mounting

Assembled kit

Monarco HAT, Raspberry Pi 4, metal enclosure. Preinstalled OS.
187 EUR
More information

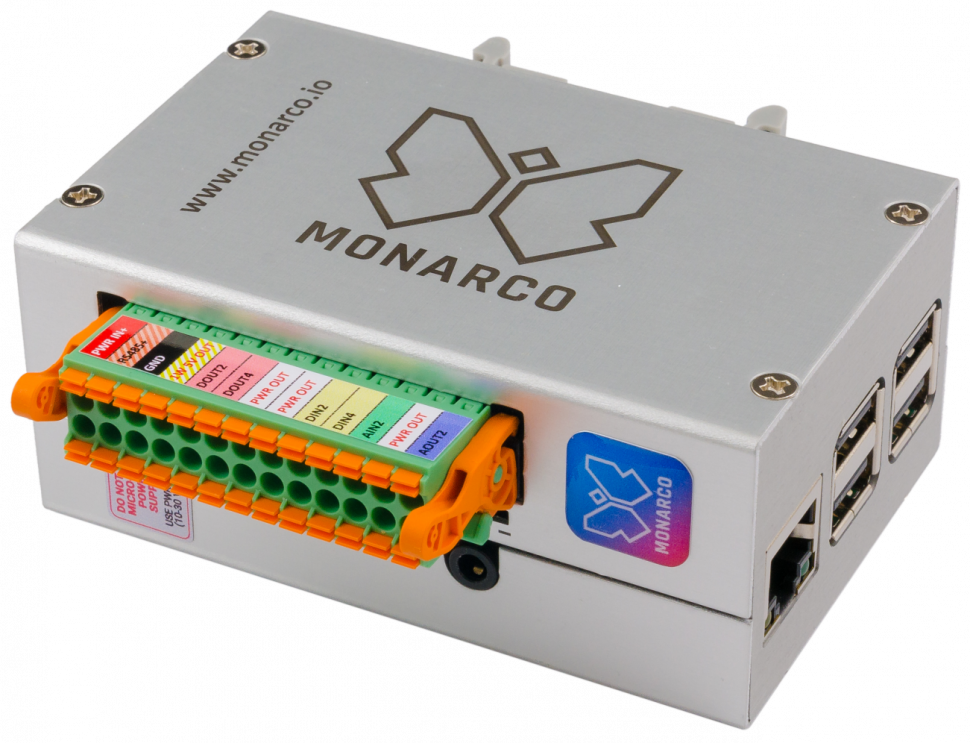

Monarco HAT and Raspberry Pi in a DIN-rail enclosure. Horizontal, with connector and temperature probe.

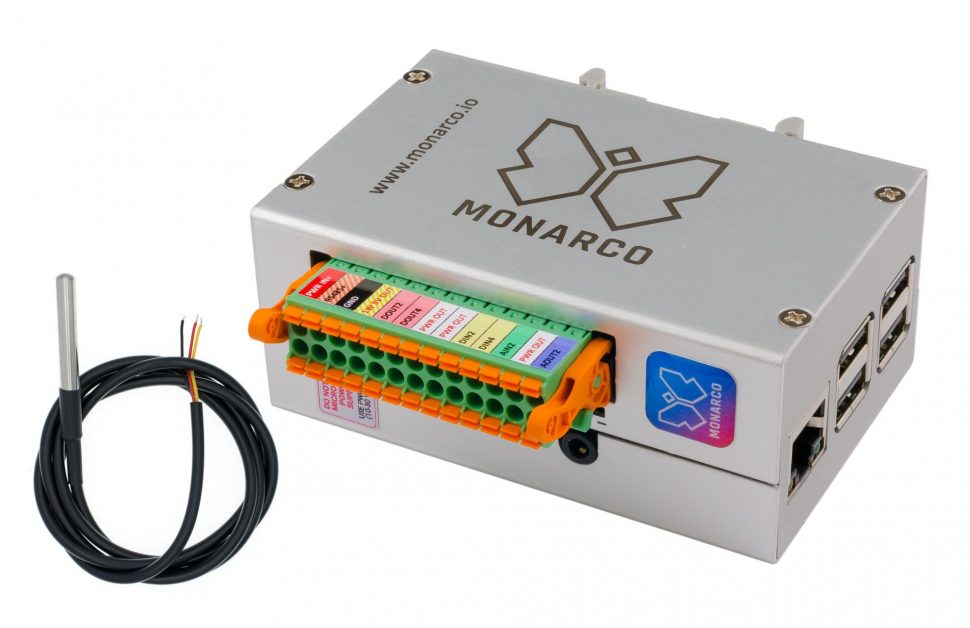

Assembled kit with temperature probe

Monarco HAT, Raspberry Pi 4, metal enclosure, temperature probe. Preinstalled OS.
188 EUR
More information

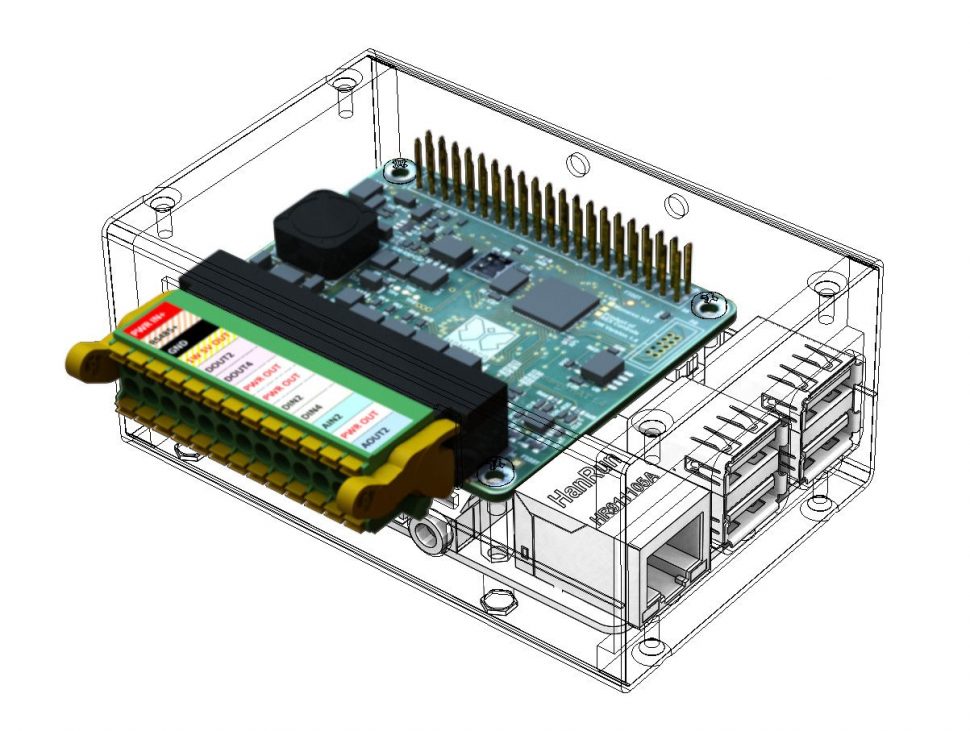

Monarco HAT with wireframe of DIN rail enclosure
